701 Kit Features and Benefits

Overview

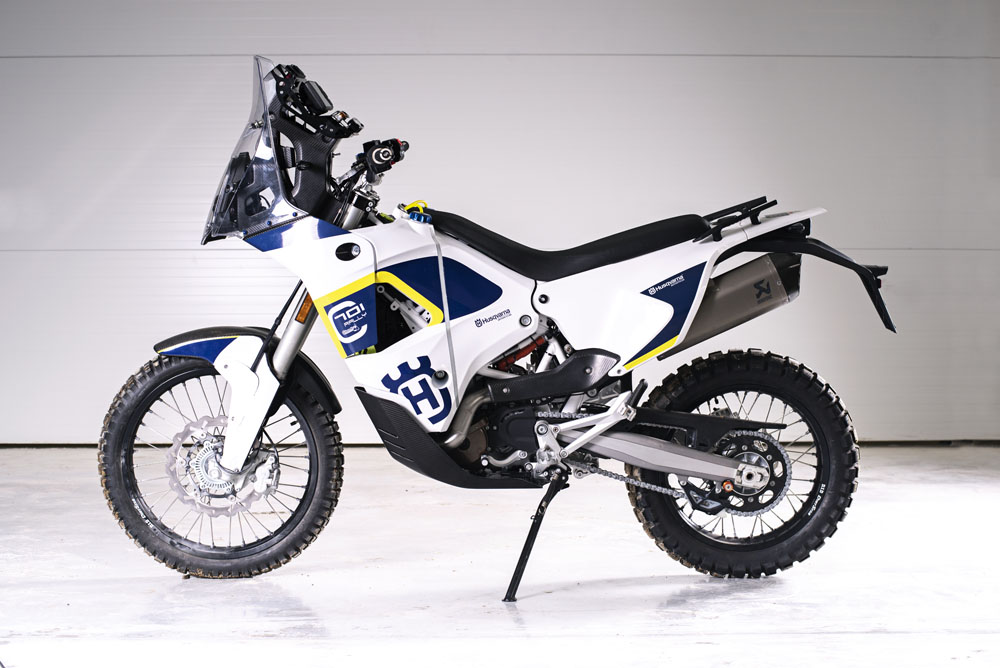

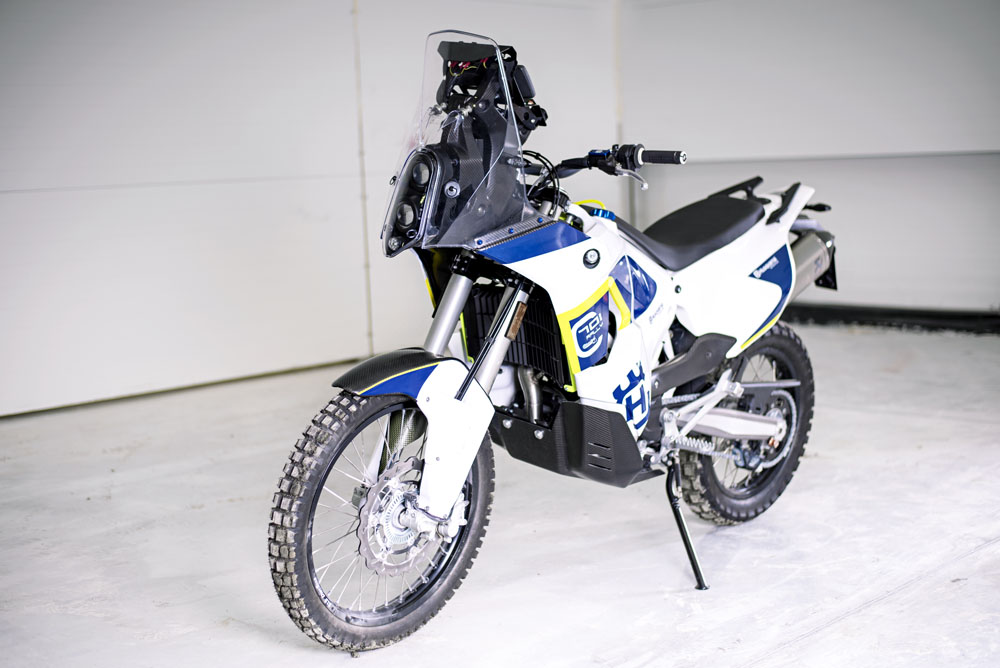

Husqvarna 701 Rally is built on the 701 Enduro platform and thanks to the premium technology materials we offer it weighs only 158kg dry. In our kit you will find e.g. 28-litre fuel tanks, an APTC slipper clutch, Bosch ABS, Brembo brakes and WP suspension. Our functional ultralight navigation tower contains the essence of traits needed for long journeys and cross-country racing. It up to you where you want to use this machine.


701rally

The kit inlcudes:

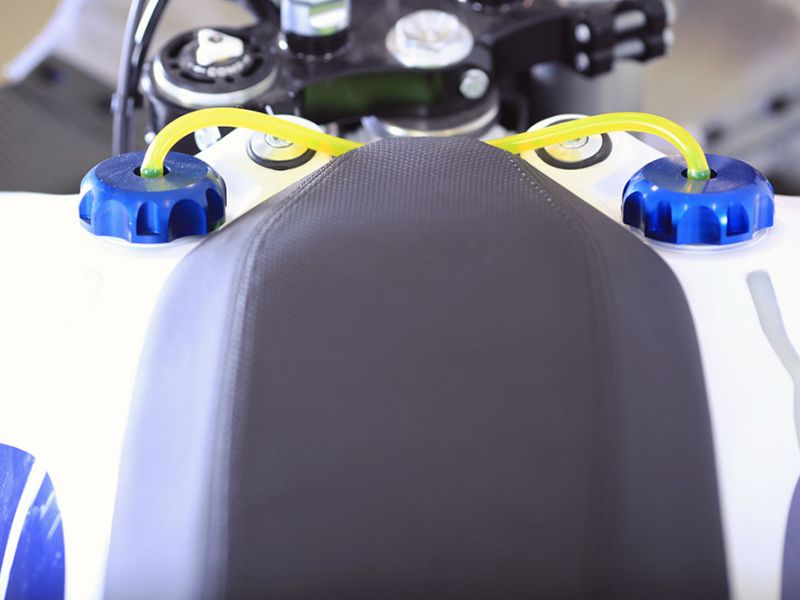

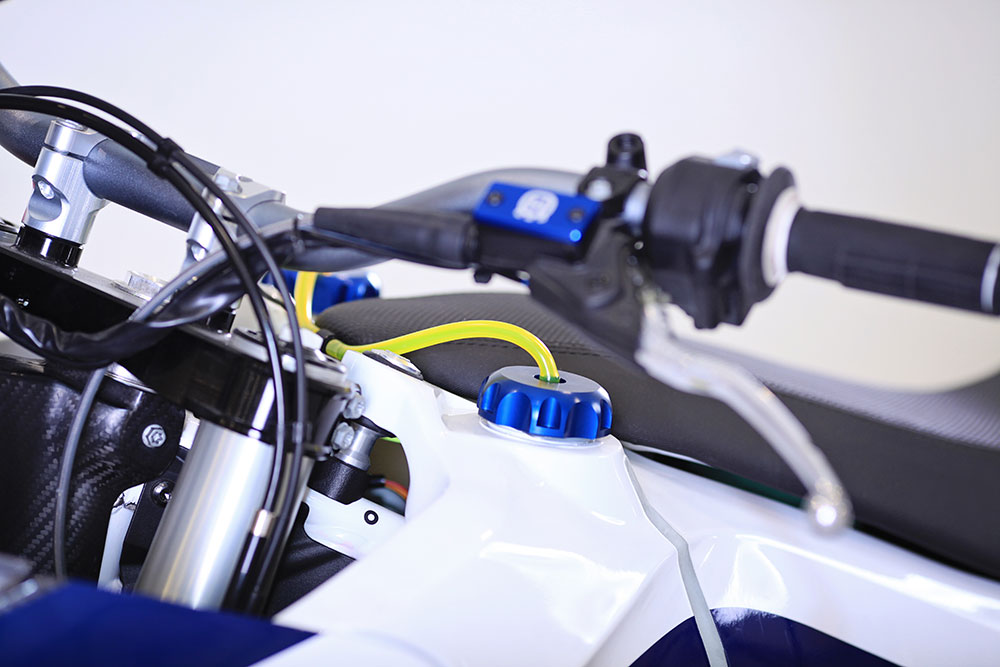

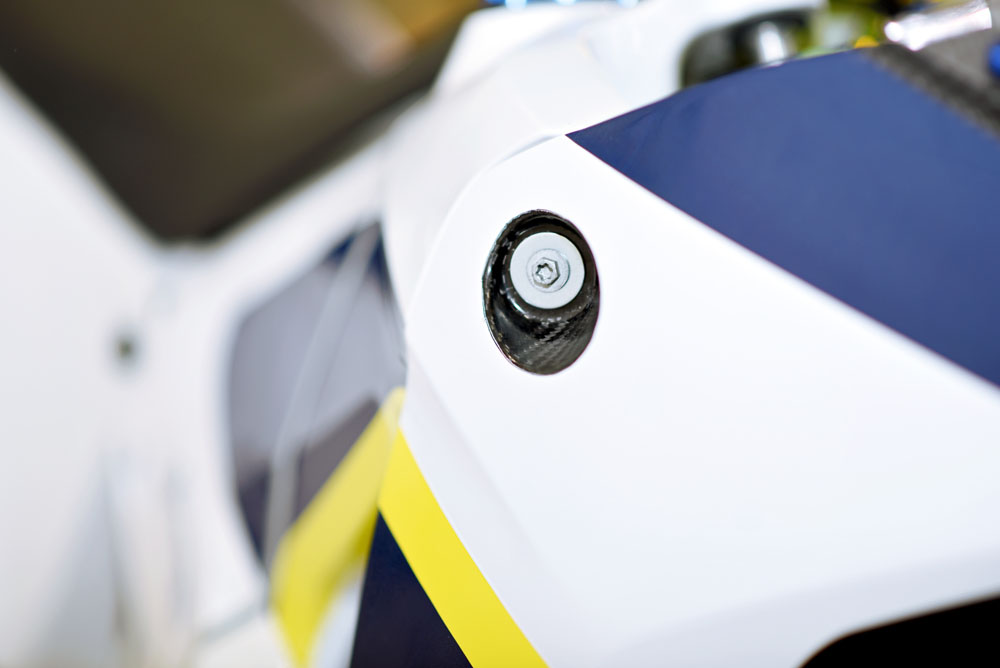

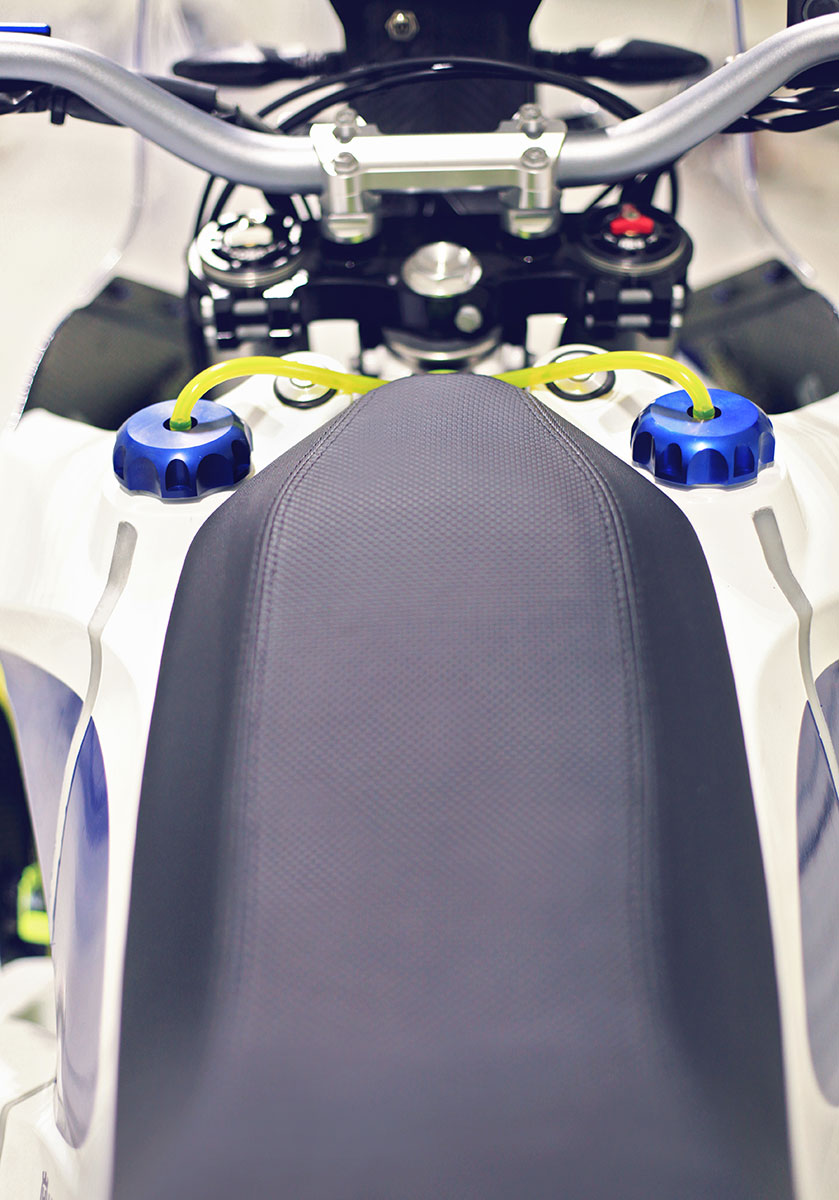

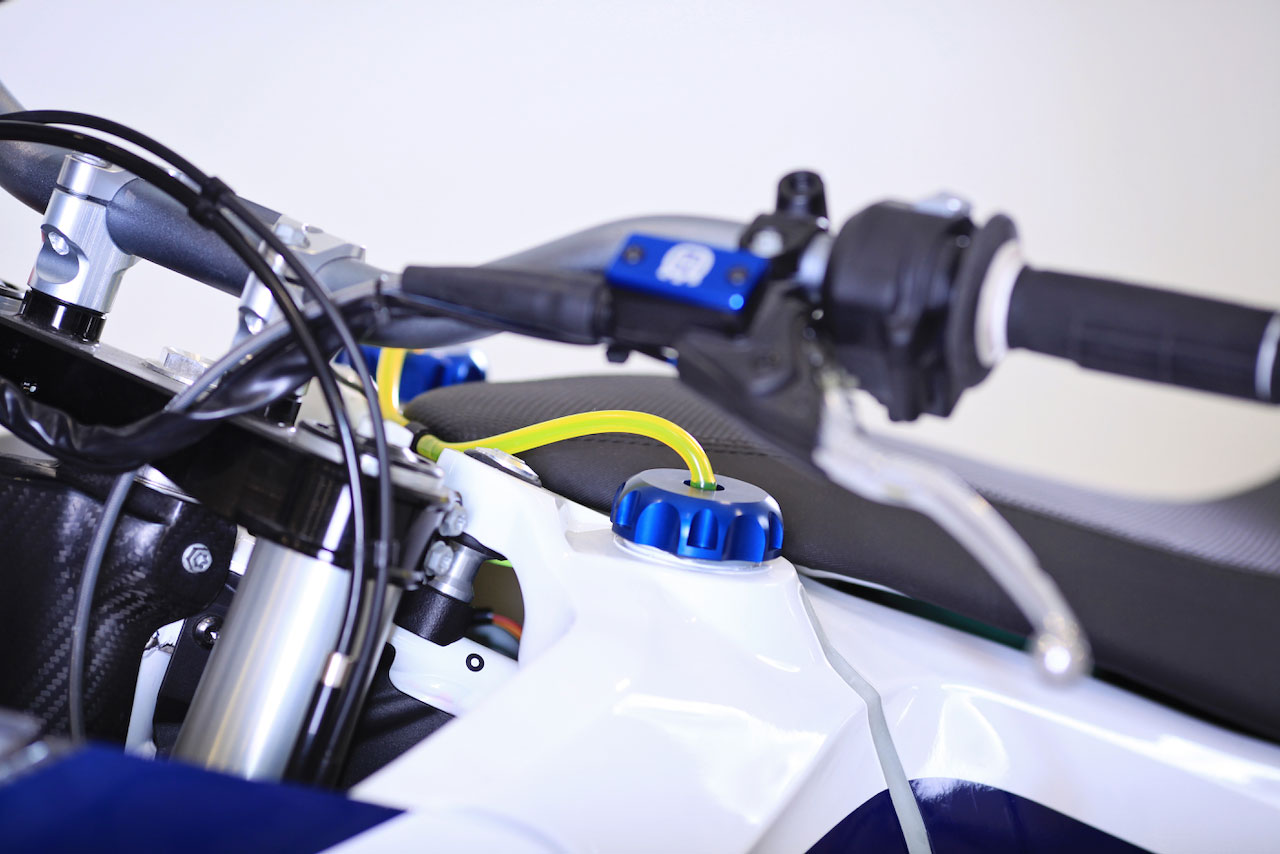

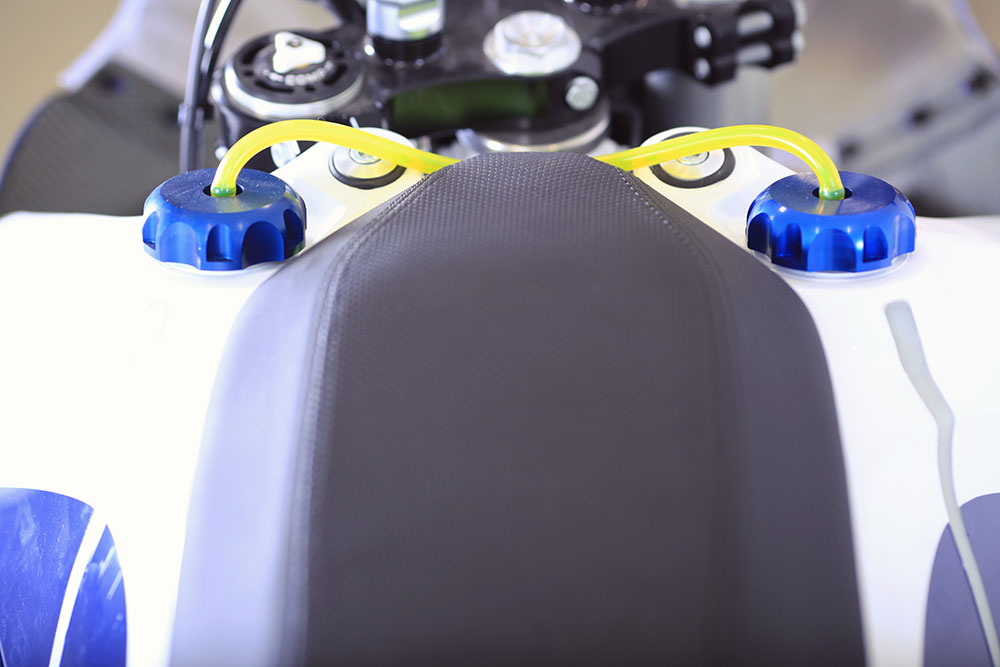

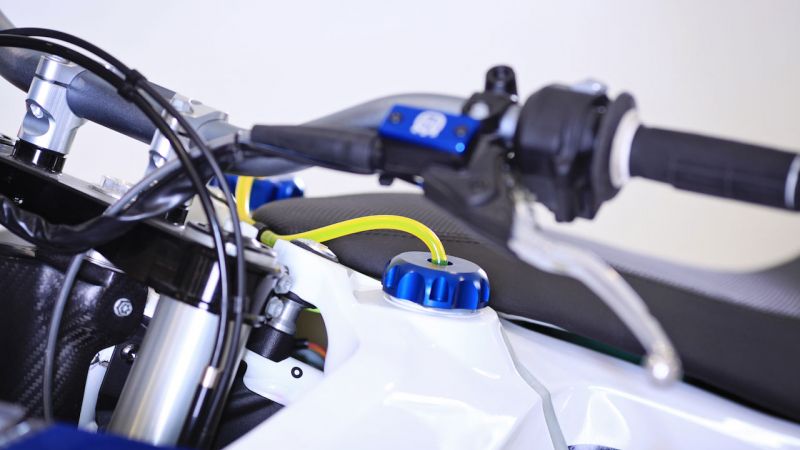

  • Interconnected front tanks (factory KTM rally parts), left and right - with all accessories. Tygon yellow breather pipes are equipped with billet aluminium front caps, and breathing is interconnected with a metallic tee. Triple layer thermal reflector is installed on the left tank to reduce heat transfer.

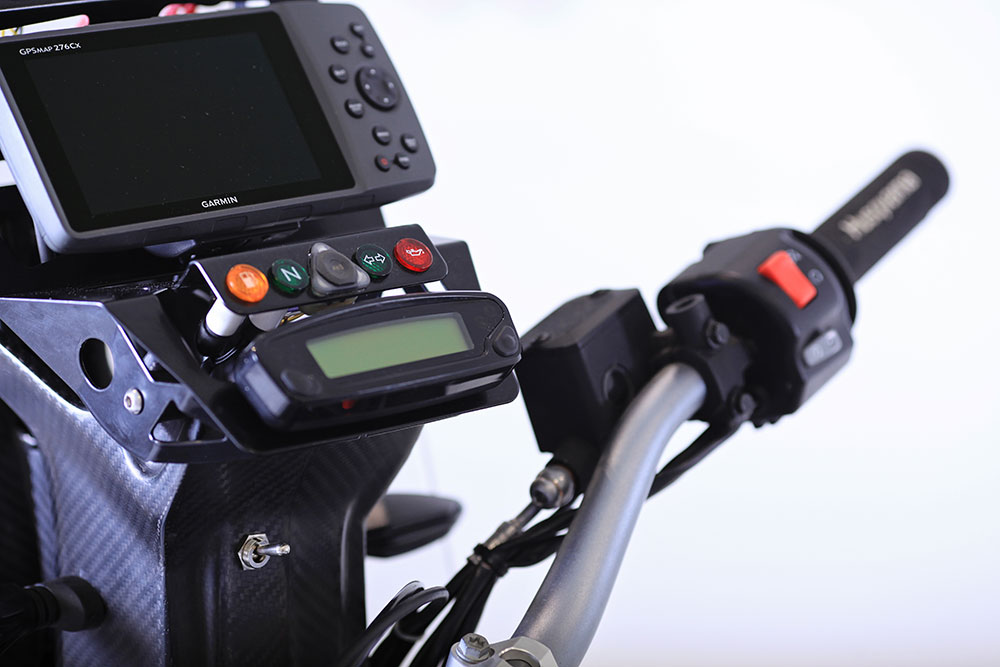

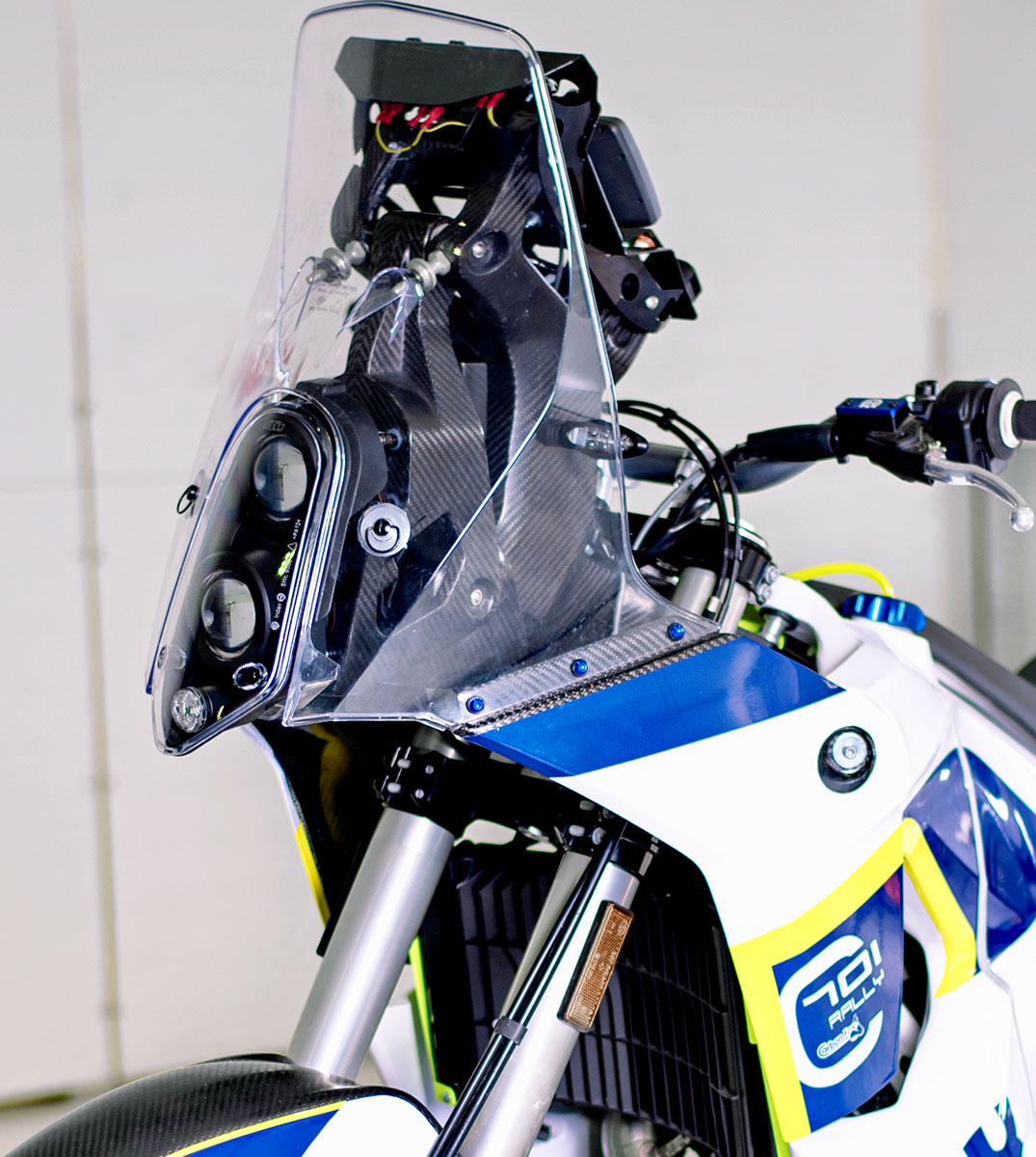

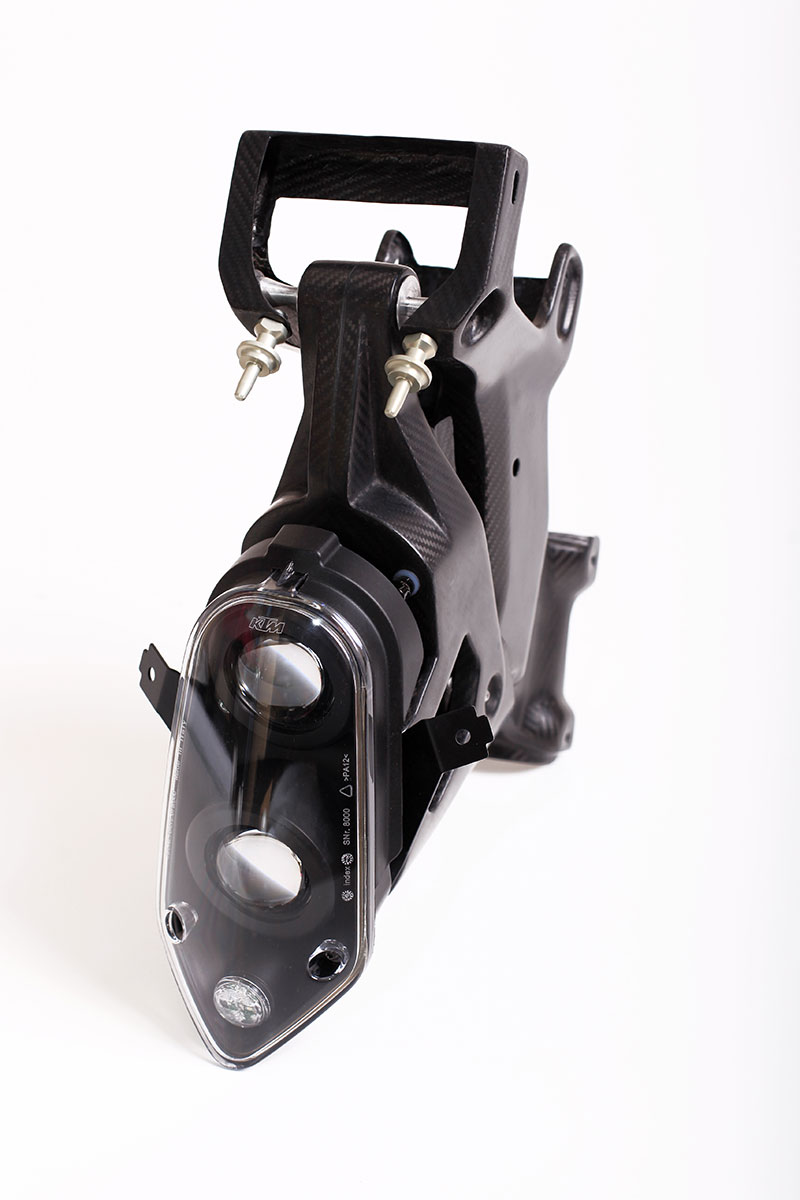

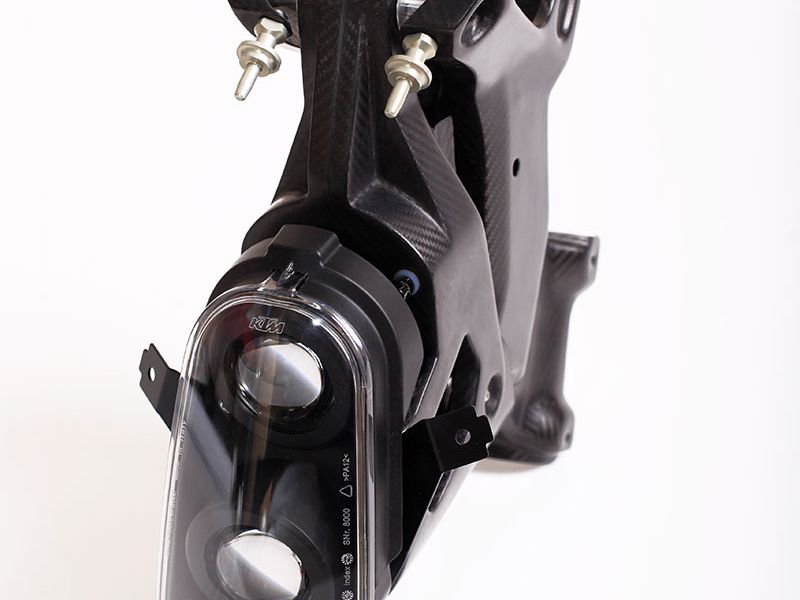

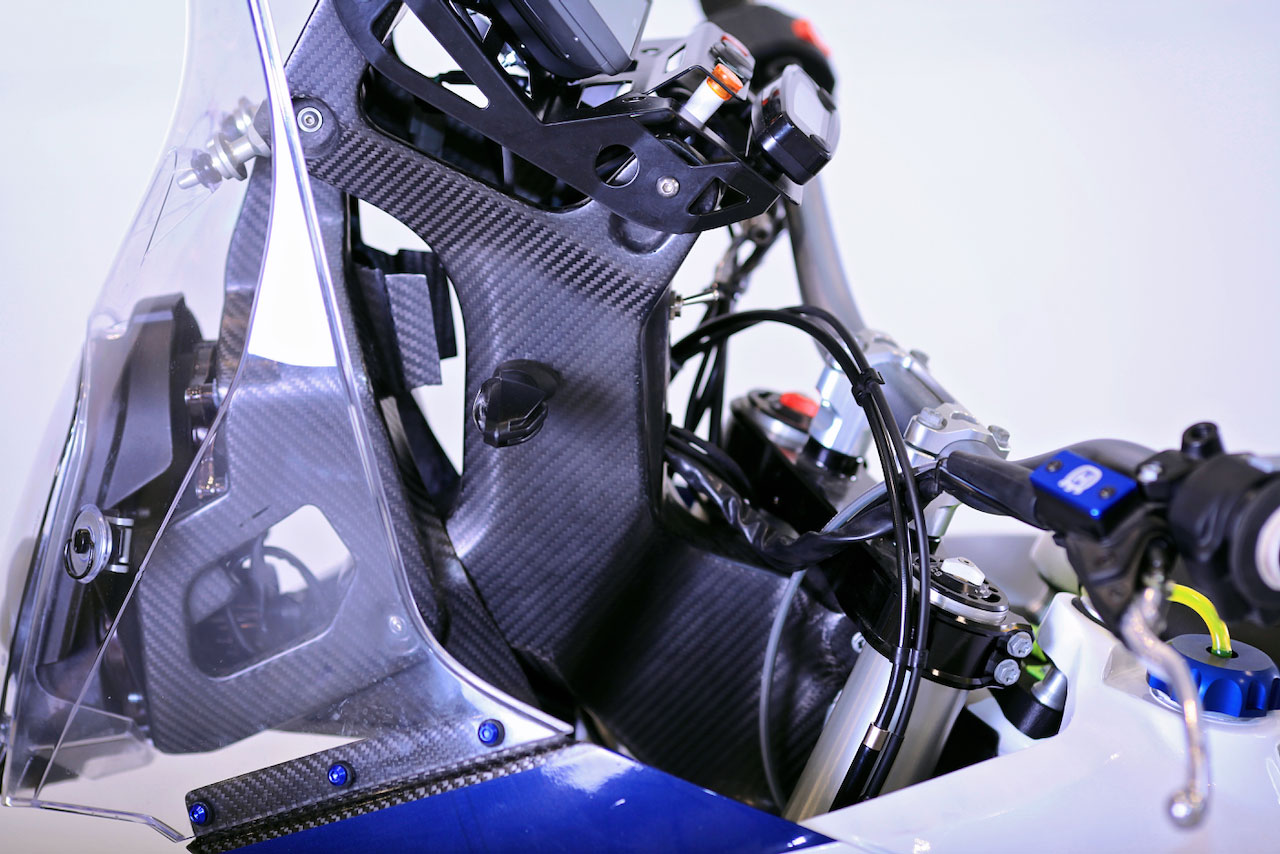

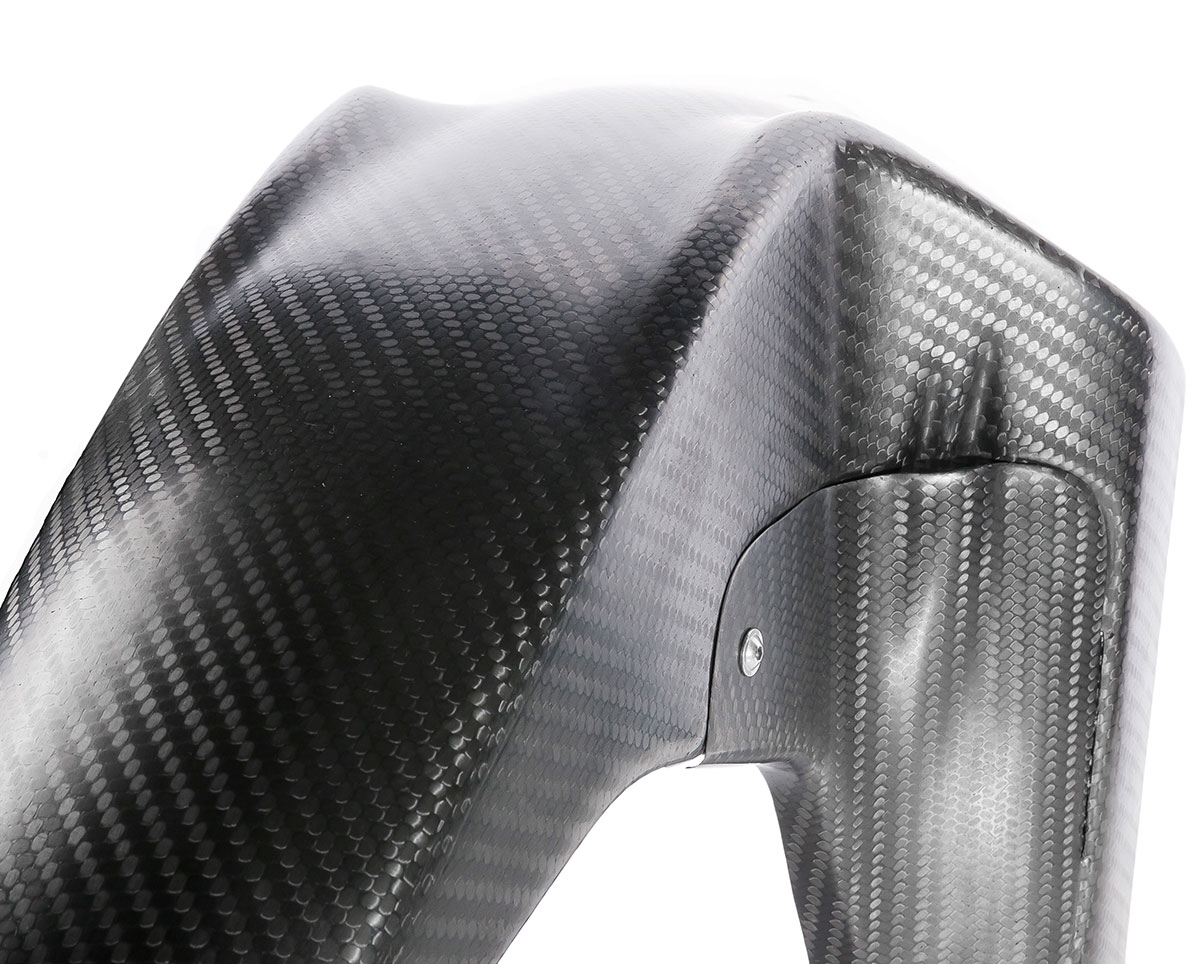

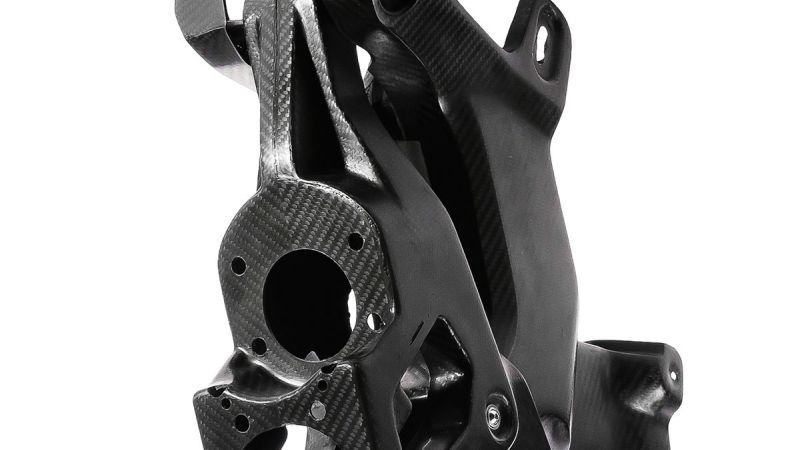

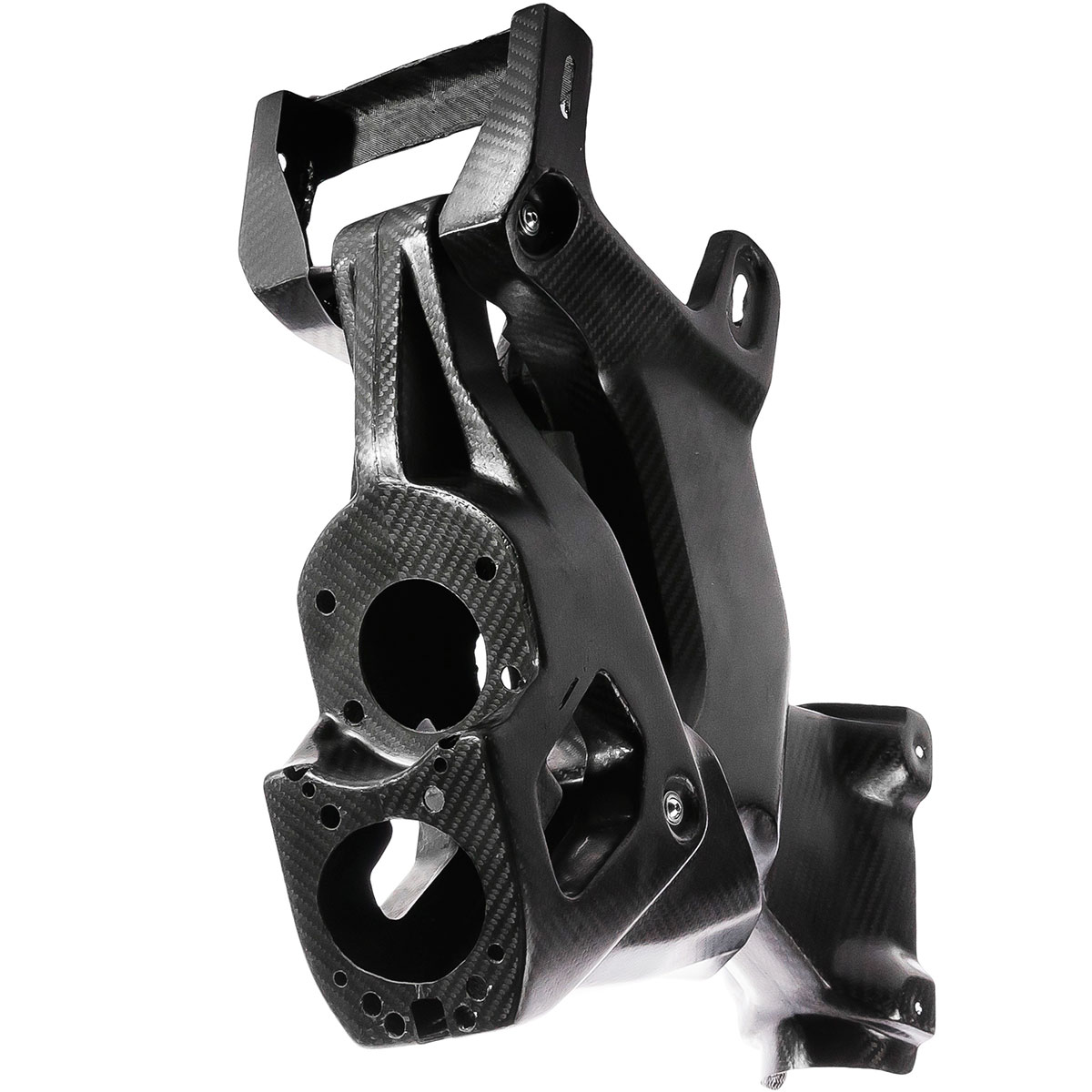

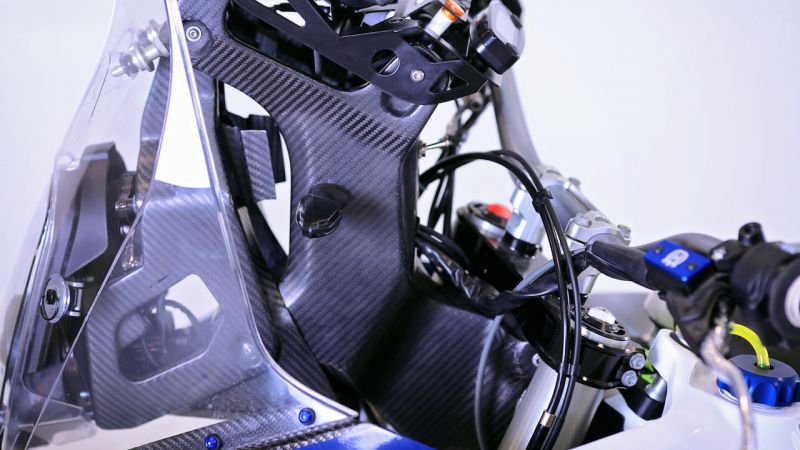

  • Composite carbon/aramid fiber navigation tower includes a top carrier with Rally or Adventure functionality.

  • Indefectible tank brackets made of aluminium, steel and stainless steel.

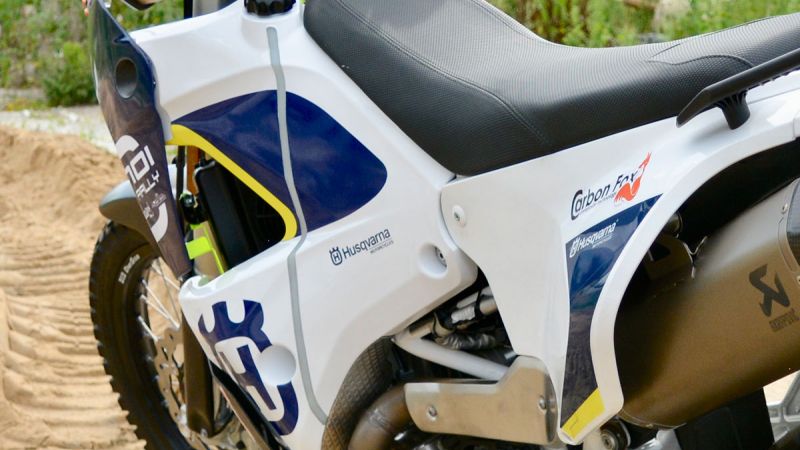

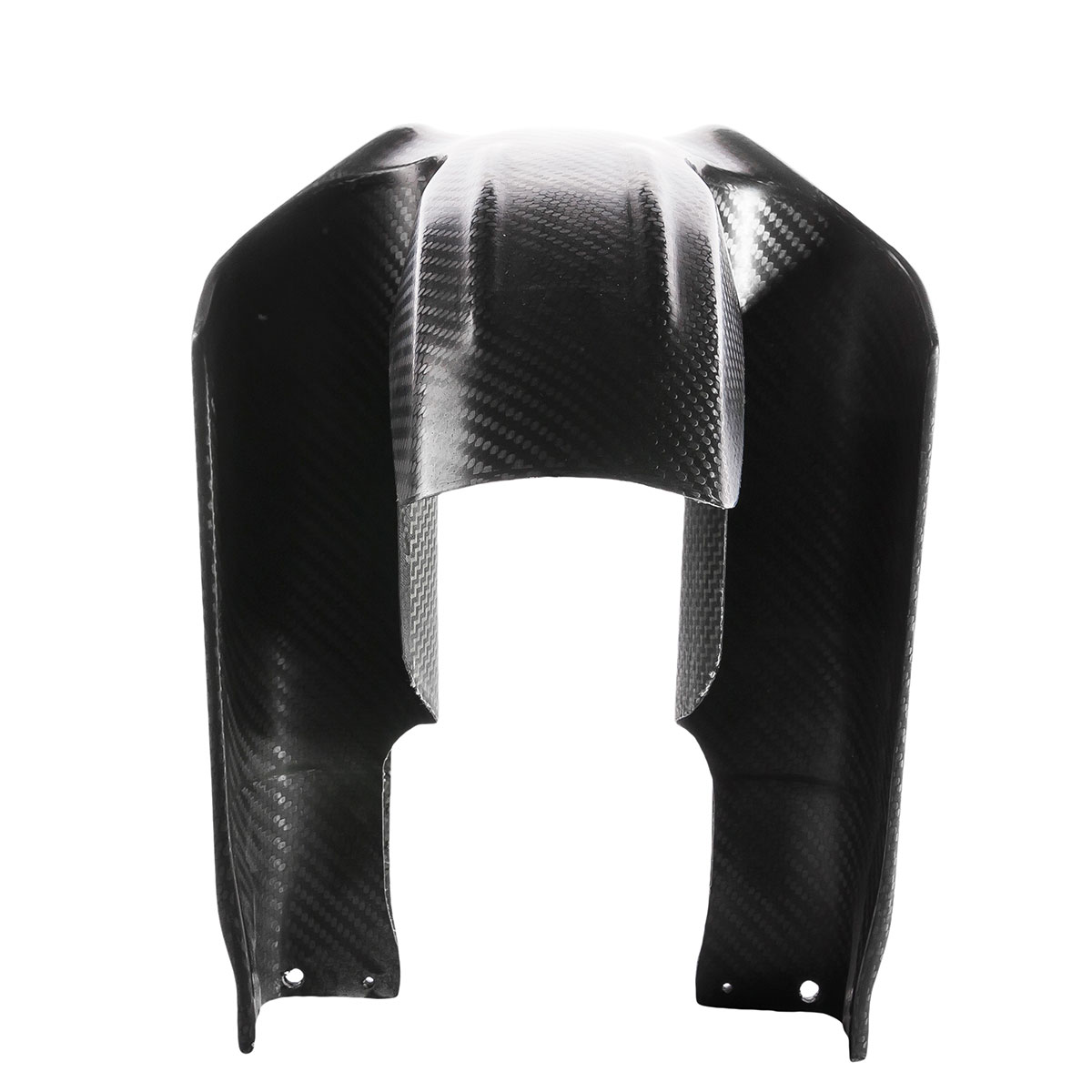

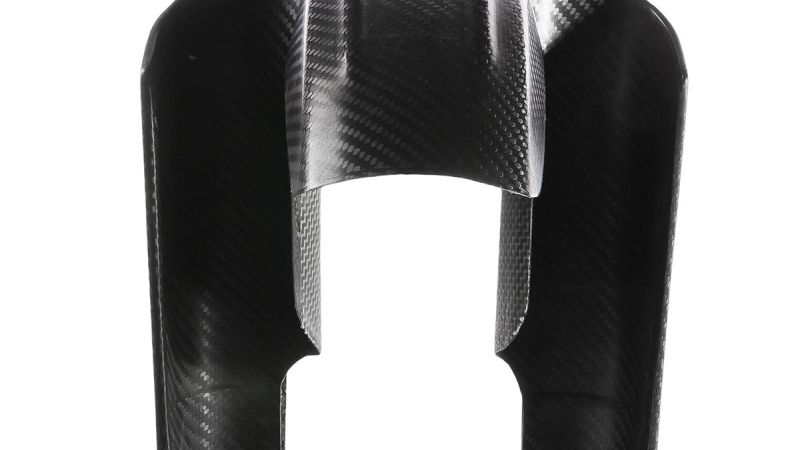

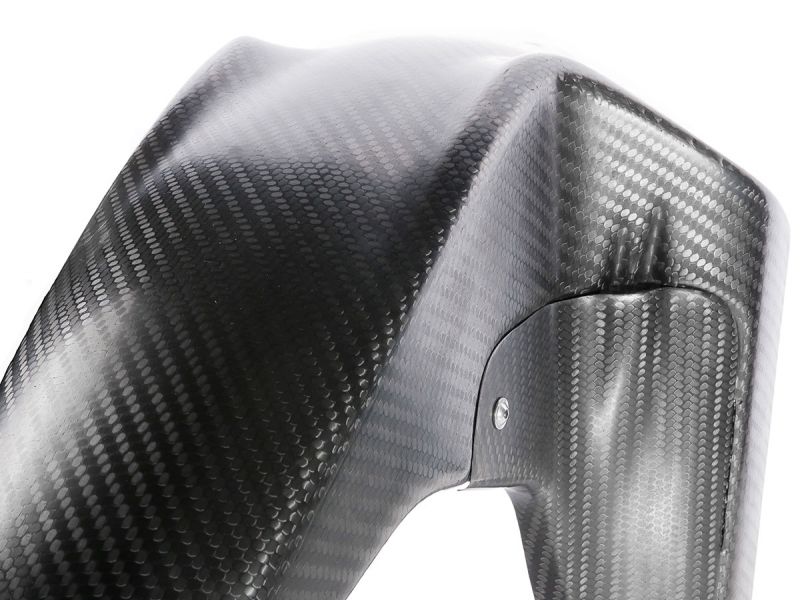

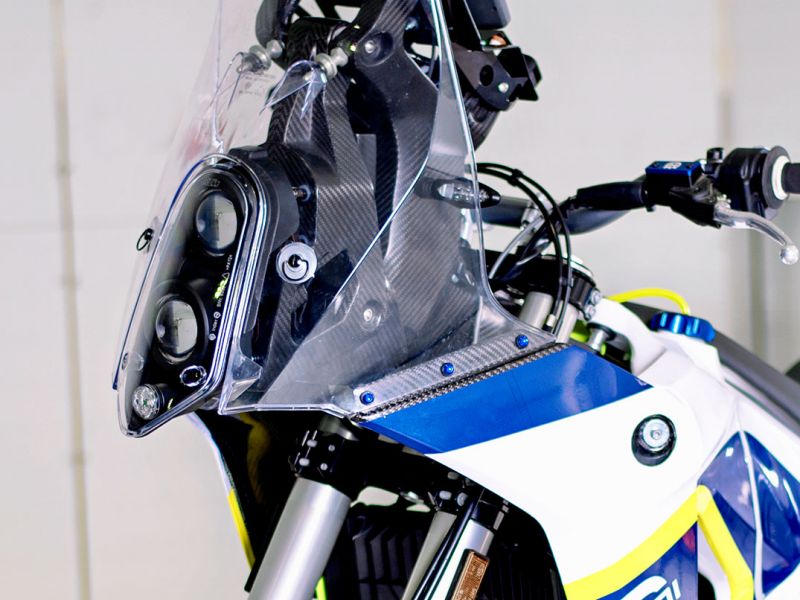

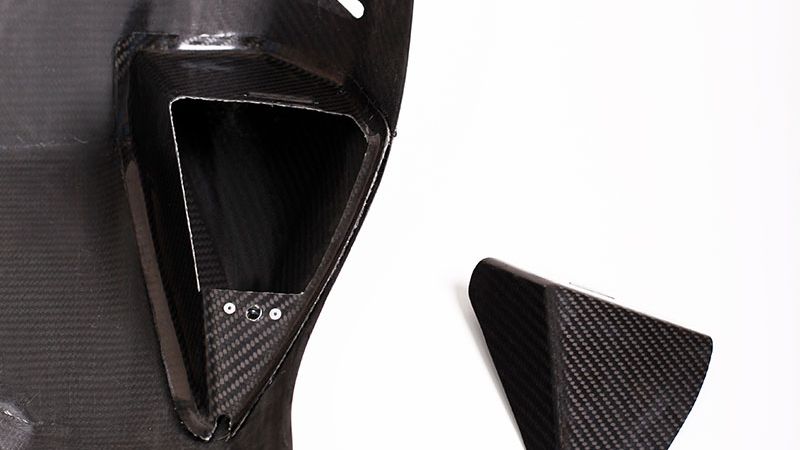

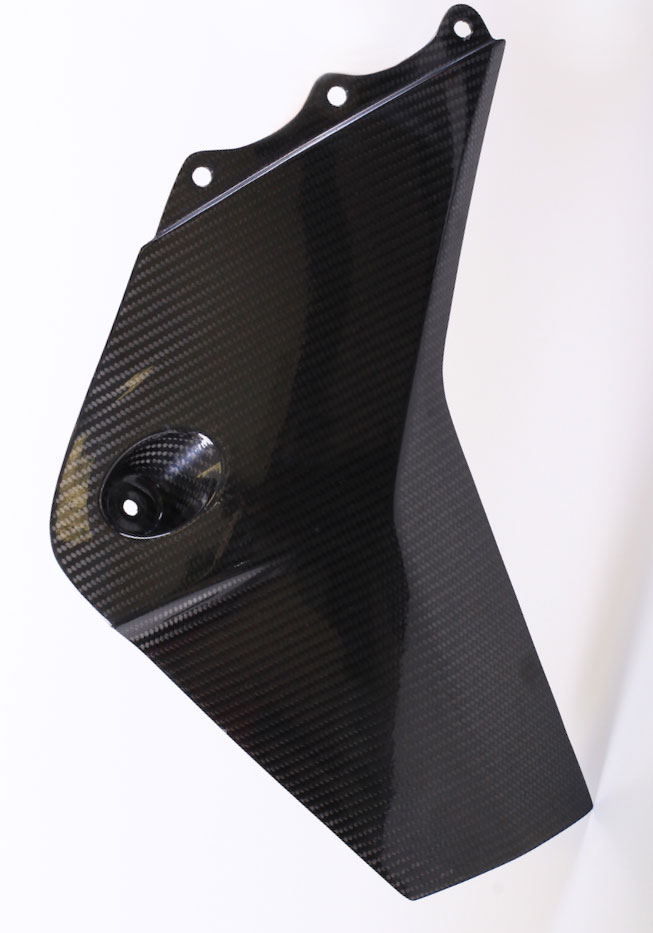

  • Wind shield and side panels are equipped with side panel brackets and rectifier relocation bracket.

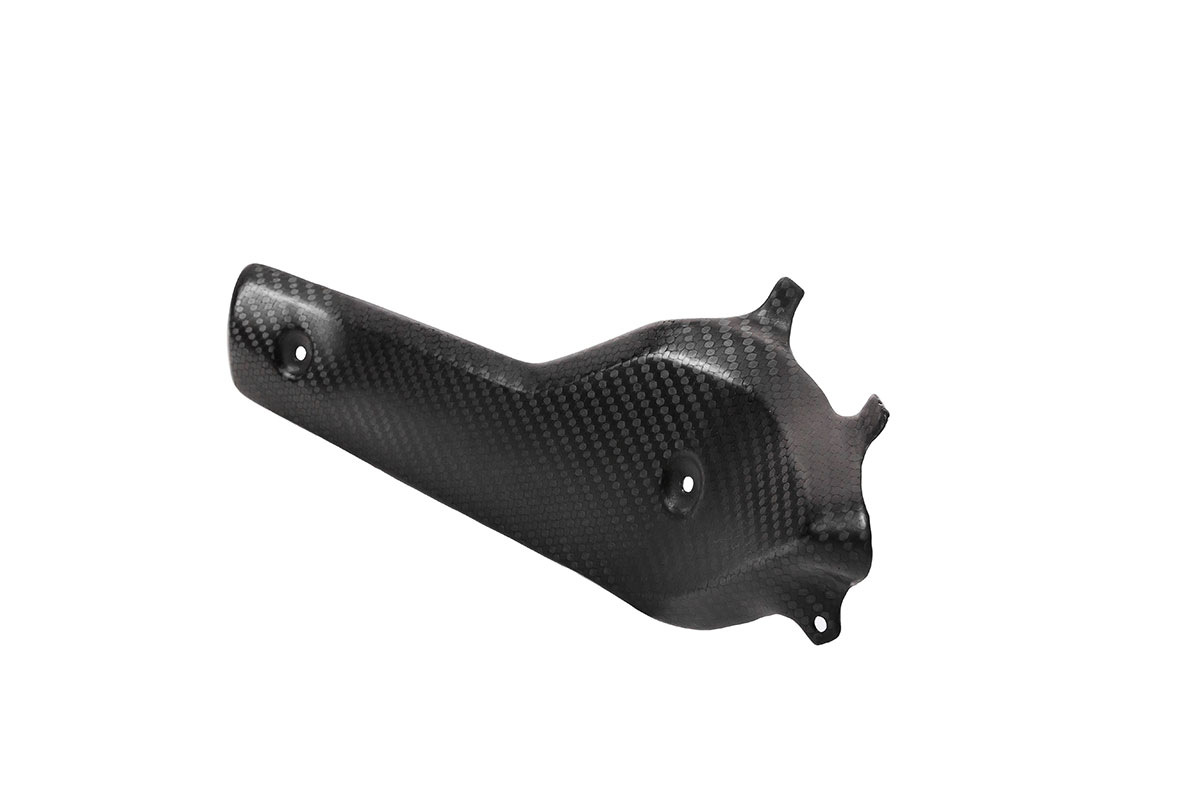

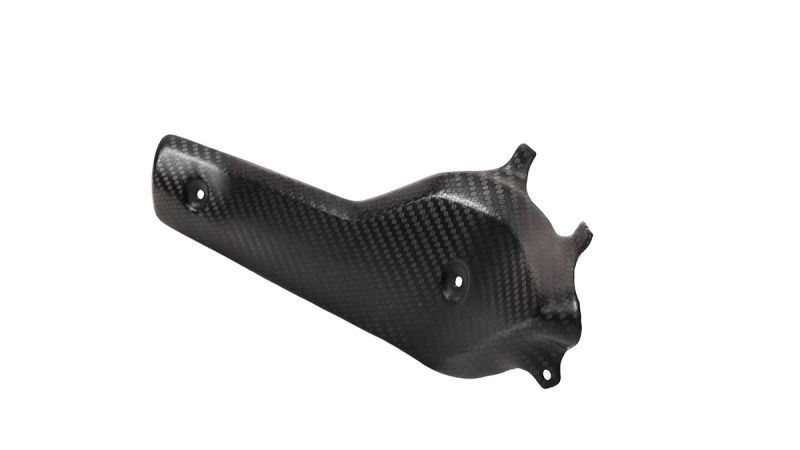

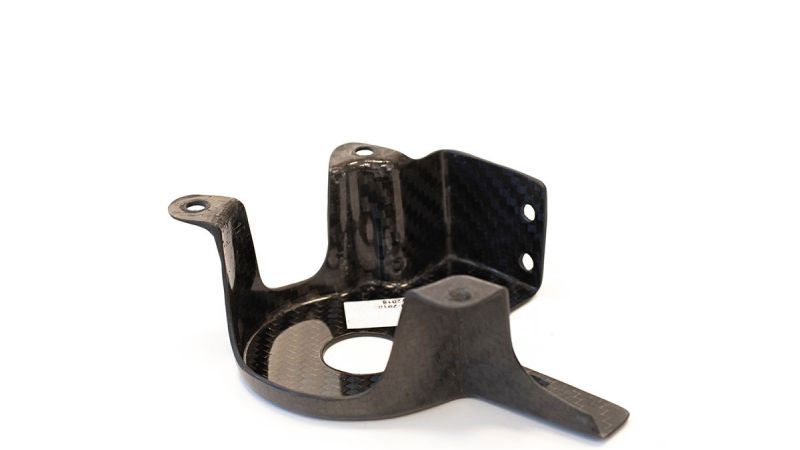

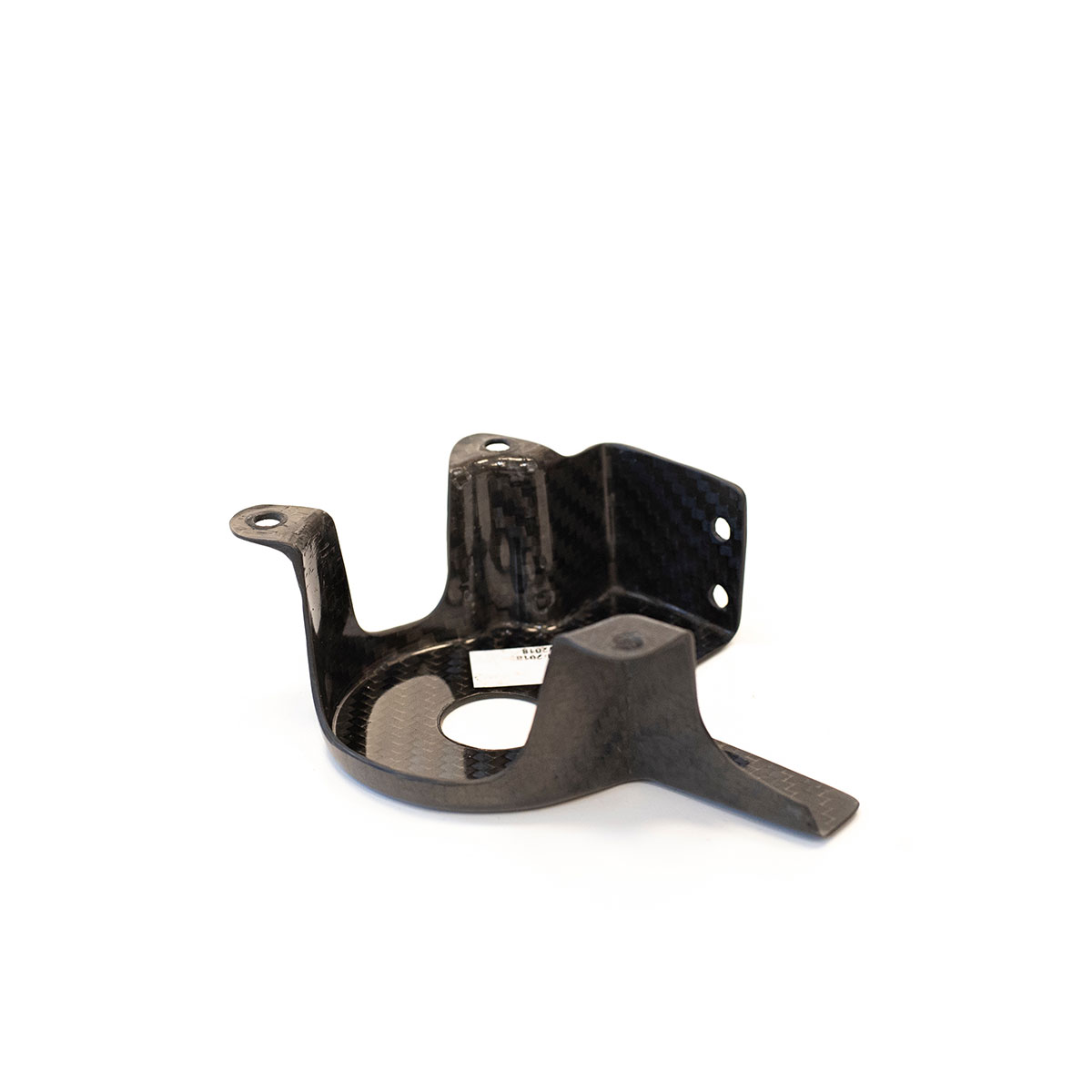

  • Additional fuel pump (OEM Keihin) is shielded with carbon fiber pump protector.

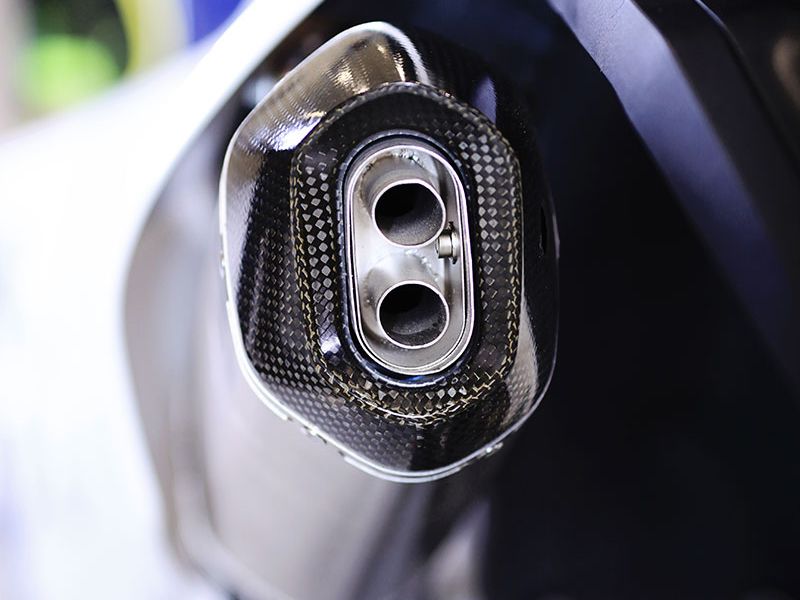

  • Dedicated exhaust header is made of stainless steel.

  • Plug-and-play fuel line is supplied with two billet non return valves, all preassembled. Additionally, you get the most advanced heat shields that are installed on the fuel lines that need to be protected. We employed aerospace technology to ensure efficiency of the protection.

  • All wiring is plug-and-play (toggle for pump selection, reserve light etc.).

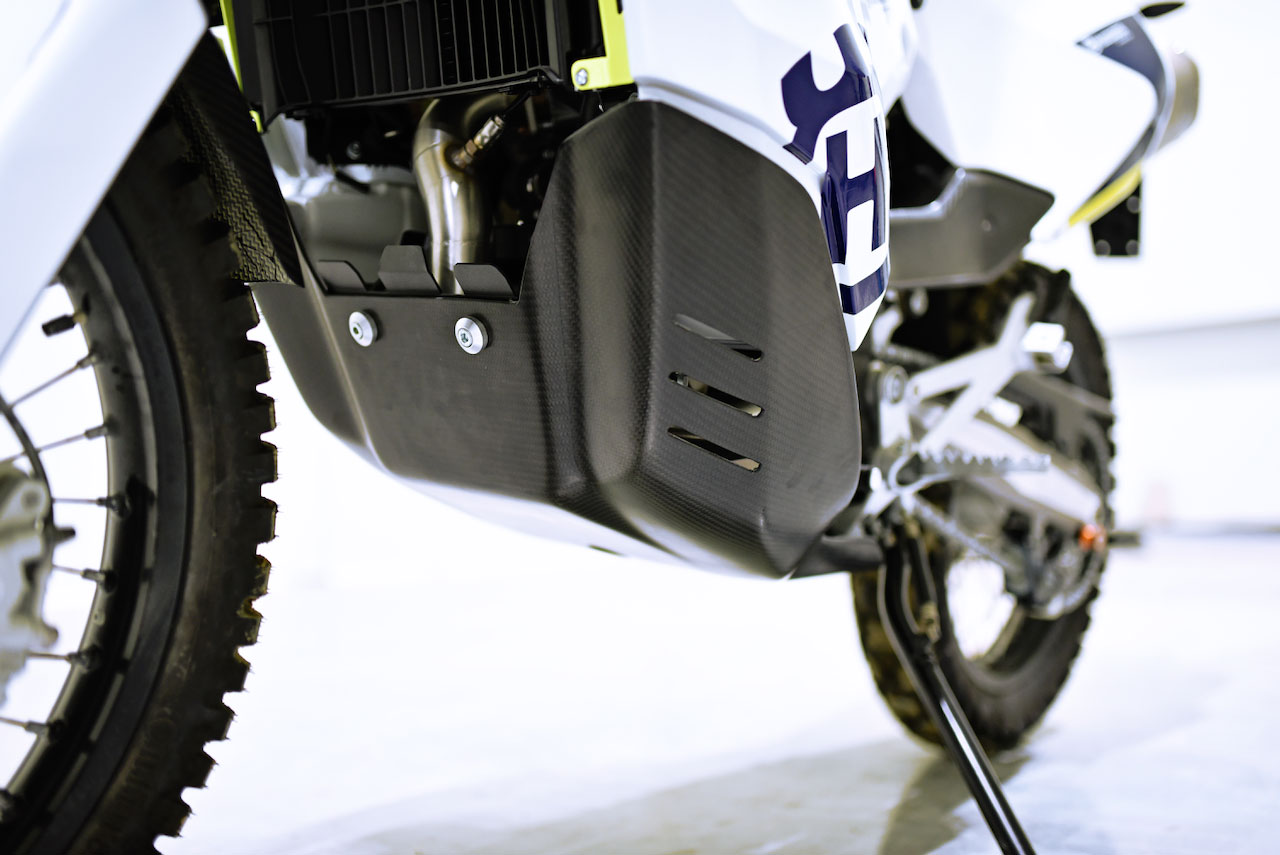

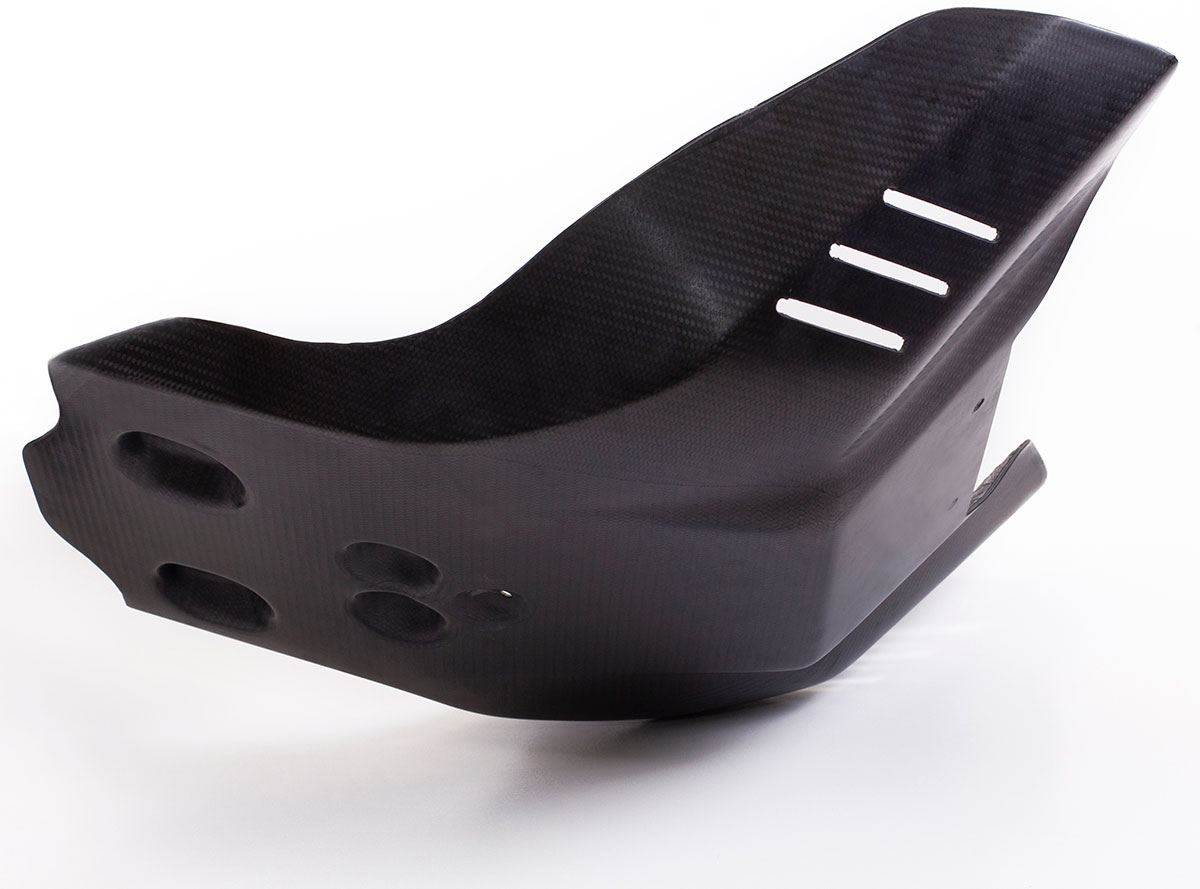

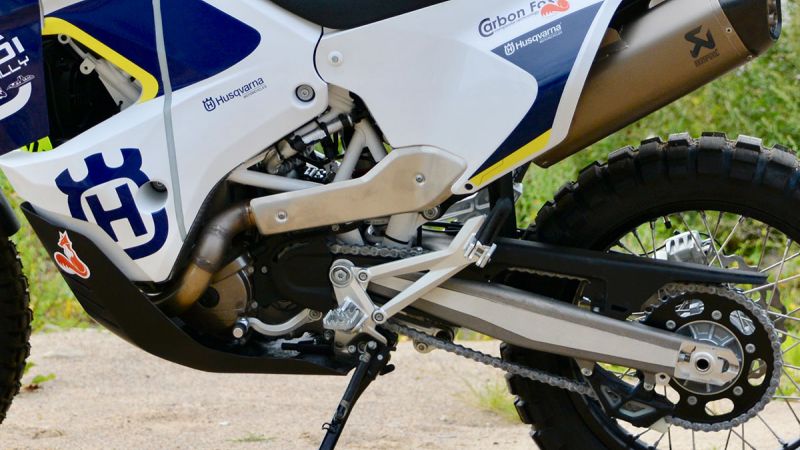

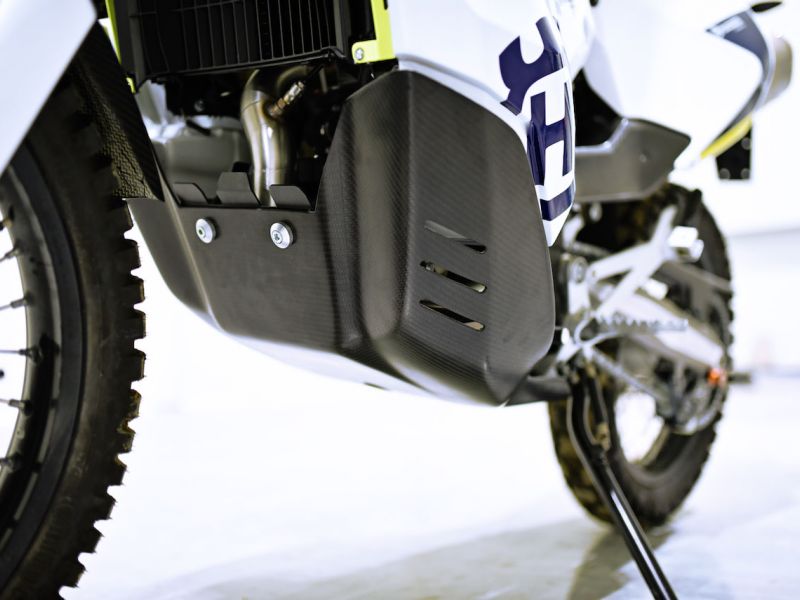

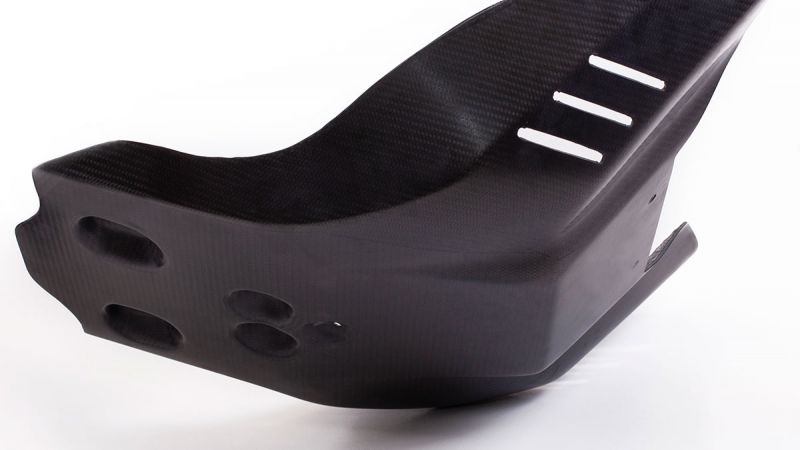

  • Carbon/aramid fiber reinforced skid plate is equipped with brackets with shock absorbers to protect the tanks in case of a heavy crash.

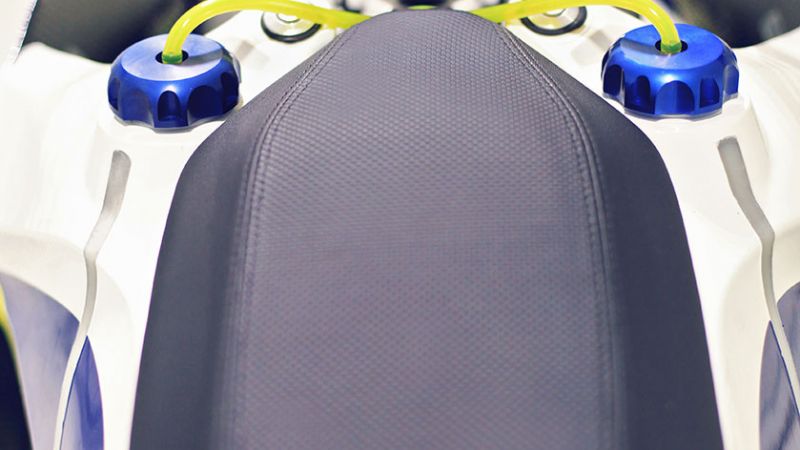

  • Seat pan is supplied with dedicated polymer inserts to make you feel comfortable even on long trips. Moreover, you can choose between seat cover color options

  • And last but not least - step by step installation manual.

You may wonder why we have chosen the Husquarna Enduro 701 platform

Husqvarna Enduro 701 offers the most powerful single-cylinder engine ever designed by the company. Delivering an additional (4.5kW) 6 hp and 3.0 Nm of torque over the previous generation while also meeting strict EURO IV emission levels.

Husqvarna have focused on introducing further advances in engine performance and reliability, while giving both new models a fresh look that remains true to the brand’s Swedish heritage. 701 Enduro are equipped with a new generation Euro IV compliant single cylinder engine that features the latest technology in terms of design and electronics. With a significantly improved power output of 74 hp (55kW) at 8,000 rpm and torque of 71.0 Nm at 6,750 rpm, the 692.7cc single cylinder powerplant offers class-leading performance.

With reliability a key factor, the use of innovative solutions such as the active evacuation and forced lubrication of the crankcase ensure long 10,000 km service intervals. All the latest engine advances provide an extremely low fuel consumption that along with the lengthy service intervals massively reduces the cost of ownership in the long run.

Smooth power delivery is guaranteed by the state-of-the-art four-valve cylinder head with its twin spark ignition. With the single overhead camshaft technology allowing for more exact valve timing at higher engine speeds, Husqvarna engineers added an extra 1000 rpm of usable power to the engine. For increased comfort and less vibrations the engine also features a second counter balancer shaft.
The Keihin electronic fuel injection features a new 50 mm throttle body that has no mechanical linkage to the throttle grip and offers better throttle response and ride-ability at small throttle valve positions.

2017 Husqvarna 701 LC4 Engine Highlights

  • Increased power & torque of 74 hp & 71.0 Nm

  • An additional 1000 rpm of usable power

  • Reduced oscillating masses for lower vibrations

  • New intake resonator for improved response at low rpm

  • Long service intervals & low fuel consumption

  • Single overhead cam

  • Double spark plugs

  • Large bore & short stroke [105 mm & 80 mm]

  • Forged aluminium piston

  • Cutting edge ride-by-wire electronics



2017 Husqvarna 701 Rally Benefits

  • Versatility & huge onroad and offroad capabilities

  • Perfect aerodynamics in all conditions

  • Astounding power-to-weight ratio

  • Long 10,000 km service intervals

  • 28-litre fuel tanks

  • Advanced electronics for smooth power delivery & sharp throttle response

  • Advanced safety thanks to Bosch ABS

  • 21" – 18" high strength DID wheels

  • Competition-level suspension with 275 mm of travel & great adjustability

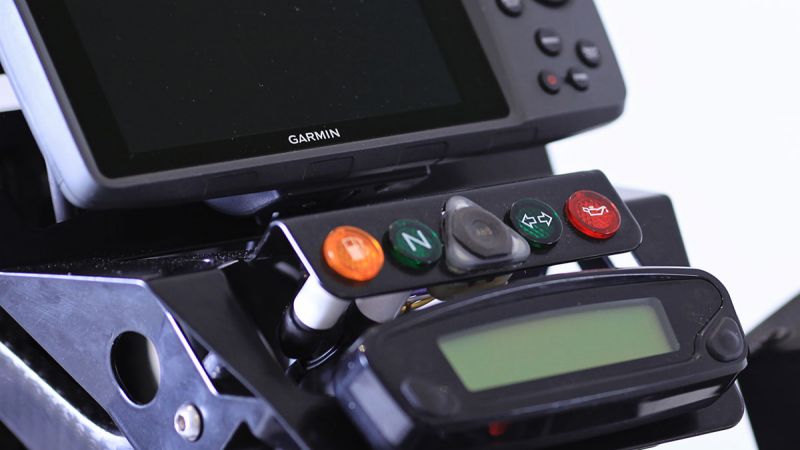

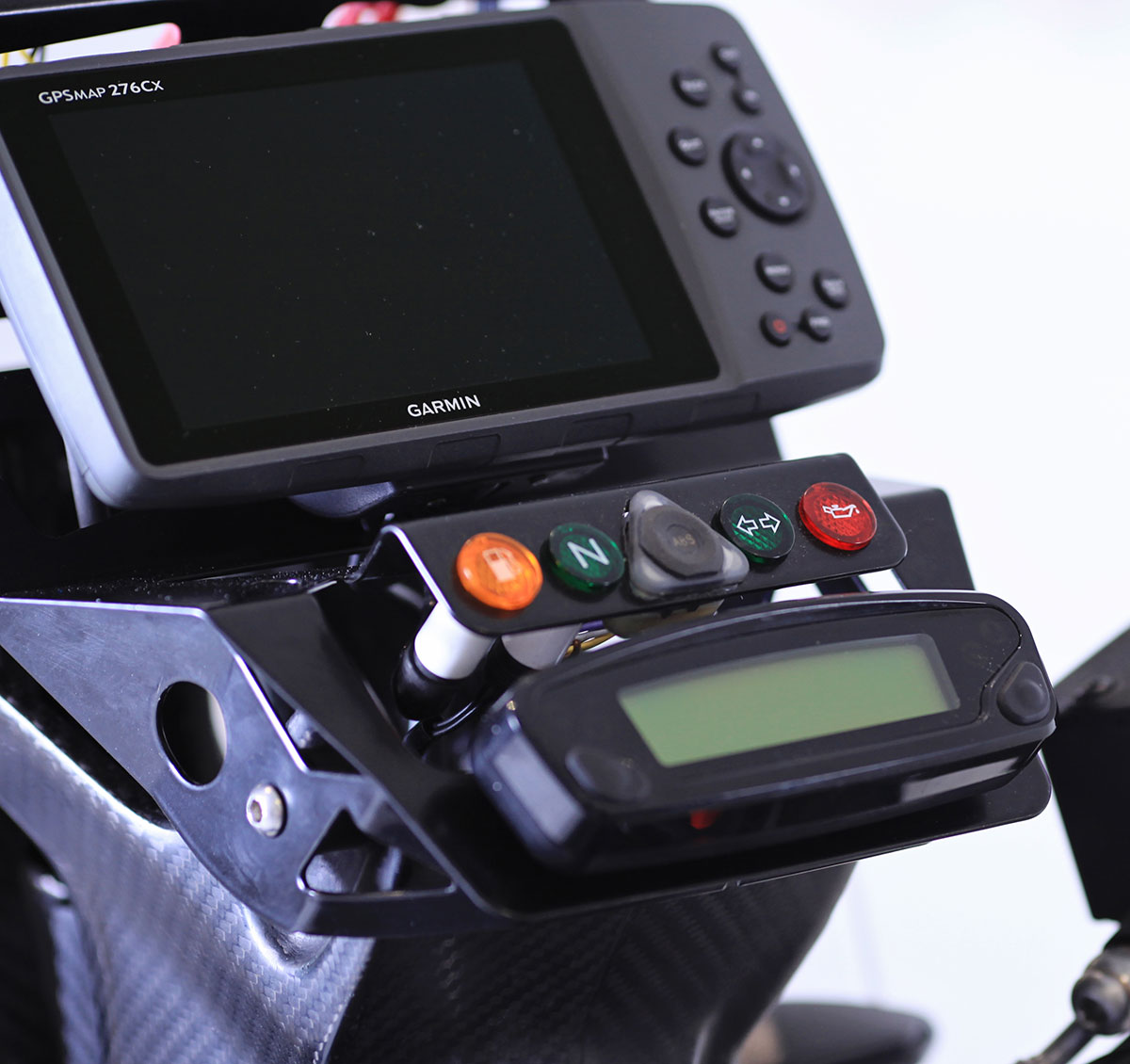

  • Clear and ergonomic work space for navigation devices

  • Extensive range of accessories

  • A2 licence compatible



About us

Passion, the need for independence, the desire to create and the vision of improving what is imperfect was the motivation to start the adventure called Carbon Fox. We specialize in the production of ultra-light and durable composites based on carbon fiber, cork, glass fiber, aluminum and other materials.
The main area of our activity is the implementation of low-series and prototype composite products.

Our offer in the largest part goes to specialized suppliers of the automotive market and rally teams. We produce lighter and more durable parts of rally motorcycles made of the highest quality, advanced composite materials reinforced with fiberglass, carbon fiber and aramid. The parts we offer give the machine a unique look. We specialize in tuning motorcycles, which have been the undisputed leader of the Dakar rally for over a dozen years. We create parts for the flagship models: KTM 690 Rally Replica, KTM 450 Rally Replica, and Husqvarna 701.

In addition, a part of the car body elements and cooling systems manufactured by Carbon Fox are installed in cars taking part in the largest rally events (Dakar, Baja Poland, Africa Eco Race). Since 2015, we have been cooperating with X-RAID, which has developed one of the best rally cars in the world - Mini All4Racing, which has been at the forefront of cross-country rallies and in particular Dakar rallies.

To fully satisfy our clients and proof the highest quality of production and service, we have implemented the Quality Management System ISO 9001:2015. Thanks to this, we guarantee the highest quality standards and can be trusted as a worthy partner.

Flexibility, experience and skillful use of human resources are our advantages. Prototyping solutions, conversations, open mind and smile are our way of a responsible business with a human face. That results in trust, openness and wide cooperation with many entities from different parts of the world. Our technologies are the technologies of tomorrow - we create much lighter and better world!
